Valves

Cross Section of Valves

All Valves Patent Pending and Guaranteed!

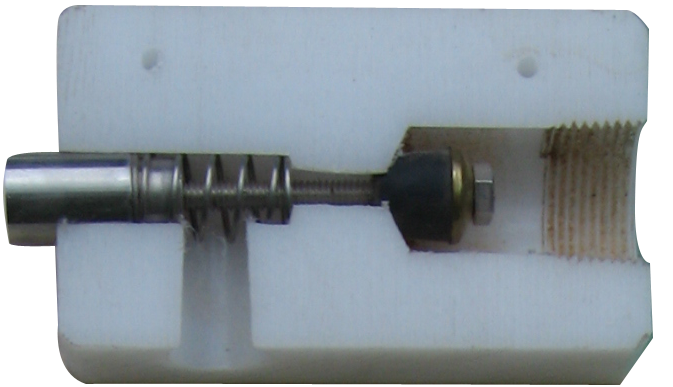

Large (High Flow) Valve LARGE HIGH FLOW VALVE
• Housing 2” wide, 18” long
• Twice the capacity of the Regular Valve
• 1” back pipe connections

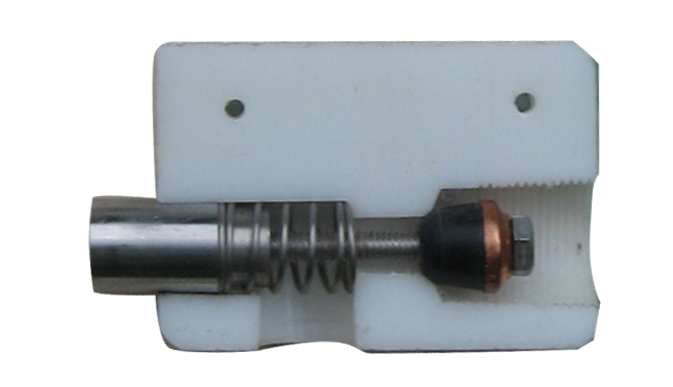

Regular Valve REGULAR VALVE
• Housing 1 ½” wide, 6” long
• 16 inches long complete
• Delivers 17 gallons/minute (1000 gal. /hr) at 60psi
• ¾” back pipe connections

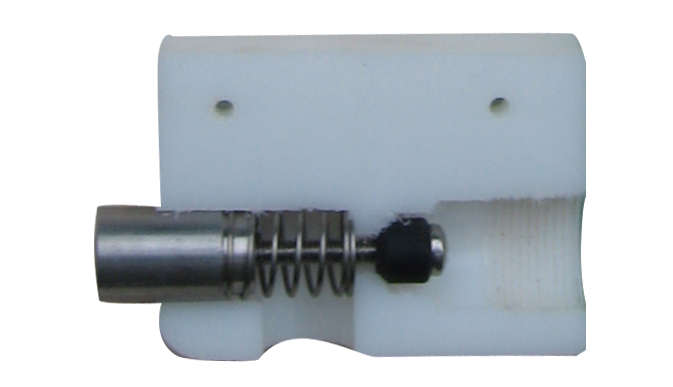

Medium Valve MEDIUM VALVE
• Housing 1 ½” wide 12” long
• Can be made to deliver 400 to 600 gal/hour
• ½” or ¾” back pipe connection

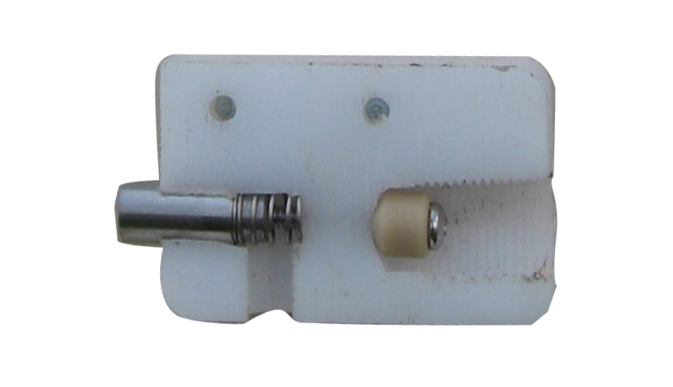

Small Valve SMALL VALVE
• Housing 1 ½” wide 10” long
• Delivers 300-500 gal/hr
• ½” or ¾” back pipe connection

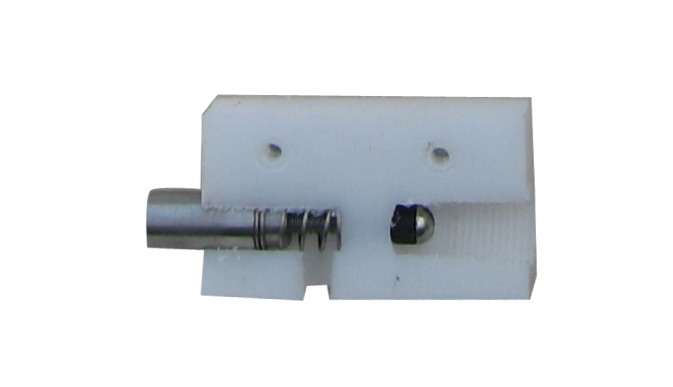

Small Economy Valve SMALL ECONOMY
• 1” wide housing 10” long
• Can be made to operate in as small as 6″
• 240 gal/hr, 3/8 ” plumbed to ½” male pipe connection

Note: Gallons per hour are calculated @ 50 to 60 lbs pressure.

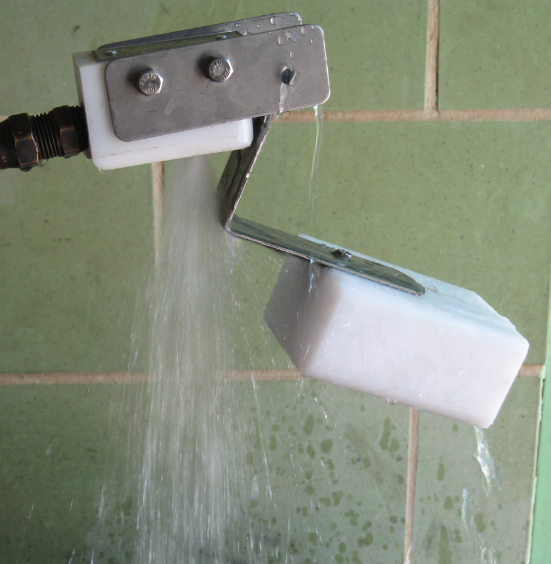

Complete Valve

complete valve

The valves are made in a housing of high density polyethylene HDPE. All the metal parts are stainless steel. The valve is spring loaded closed.

The weight is a solid block of HDPE plastic and the side plates and arm are stainless steel.

If water pressure is over 60 lbs, we will provide larger weights or move weight out further on arm.
